High Density Drive-in Racking System

Drive-in racking is a professional high-density warehouse storage solution designed to solve low space utilization problems of traditional shelf systems. Featuring a compact integrated structure without independent single-row aisles, this racking allows forklifts to drive directly into the internal rack lanes to load and unload palletized goods efficiently. By eliminating most redundant intermediate operating aisles, it makes full use of limited warehouse floor and vertical space, greatly improving overall storage capacity and maximizing warehouse space utilization compared with conventional pallet racking.

  • ✔ High space utilization — reduces warehouse aisle occupation
  • ✔ LIFO storage principle for bulk homogeneous goods
  • ✔ Heavy-duty steel construction with powder coating
  • ✔ Ideal for cold storage, food & beverage, chemical industries

Drive In Racking System- Features

  • ✔ High space utilization, reduce warehouse aisle occupation greatly
  • ✔ Adopt LIFO storage principle, ideal for bulk homogeneous goods storage
  • ✔ Heavy-duty steel construction with durable powder coating finish
  • ✔ Modular structure, flexible layout and convenient assembly
  • ✔ Multiple protective accessories available to prevent forklift collision damage

Drive-in Racking System Standard Specifications

  • ✔ Rack Height: Standard 3–10m, customized according to warehouse ceiling height.
  • ✔ Load per pallet: Standard 1000kg–1500kg per pallet position.
  • ✔ Lane depth: Normally 2–6 pallets deep for one-way LIFO design.
  • ✔ Compatible pallets: Standard 1200×1000mm, 1200×800mm Euro pallet, 1100×1100mm.
  • ✔ Adjustment pitch: 75mm hole pitch for flexible layer height adjustment.
  • ✔ Material: Q235 steel, electrostatic powder coating, coating thickness 60–80μm.

Drive-in Racking System-Applications

  • ✔ Cold storage warehouse for frozen meat, seafood and ice cream
  • ✔ Food & beverage factory for bulk drinks, canned food and raw materials
  • ✔ Chemical & plastic industry for large volume homogeneous raw materials
  • ✔ Grain and oil warehouse for packaged rice, flour and edible oil
  • ✔ Manufacturing factory for bulk finished goods and raw material stock
  • ✔ Logistics distribution center with single SKU large batch inventory

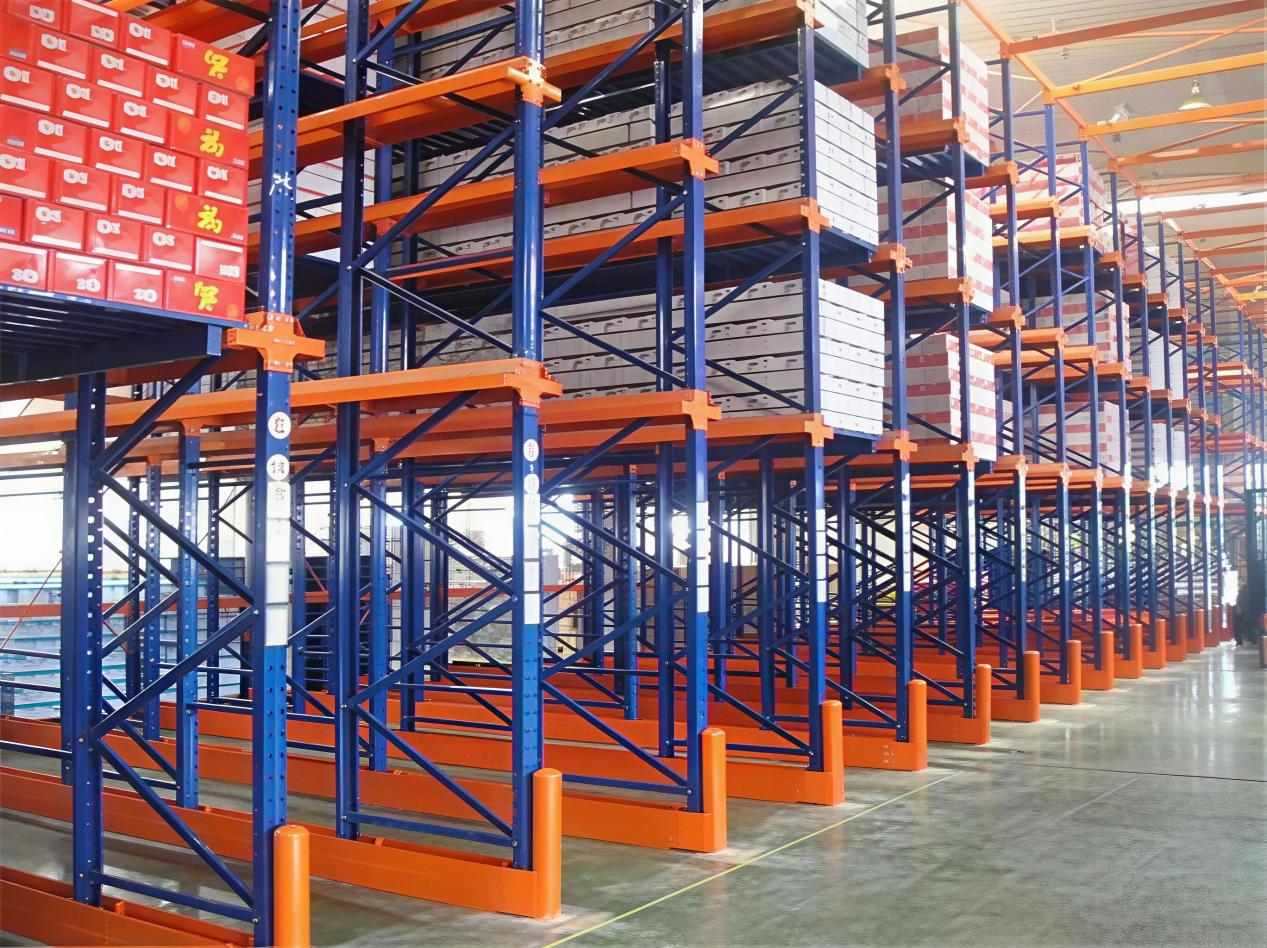

High Density Drive-in Racking System application

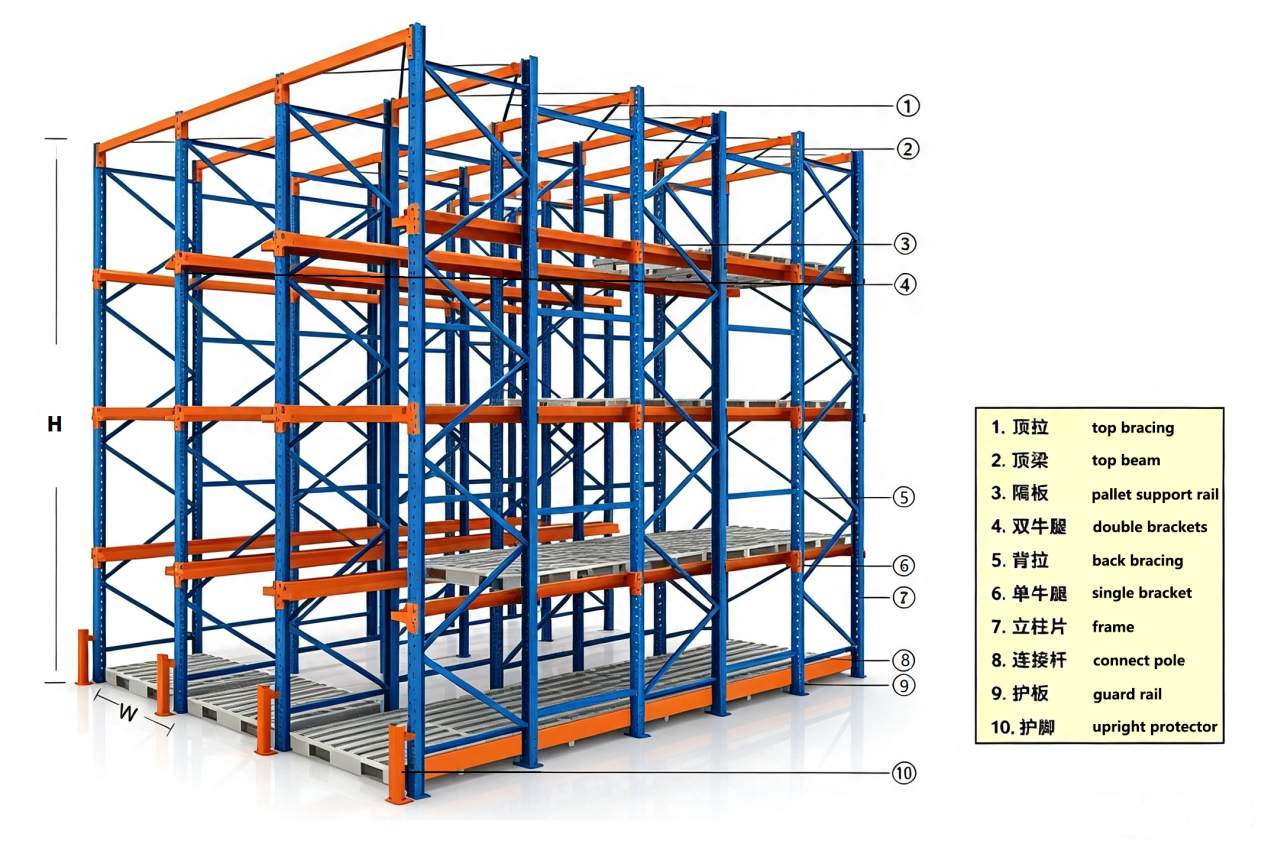

Drive In Racking System- Component

High Density Drive-in Racking System component

FAQ for drive in racking system

Q: What is drive-in racking?
A: Drive-in racking is a high-density warehouse storage system. Forklifts can drive inside the rack lanes for pallet loading and unloading. It removes most working aisles to maximize warehouse storage capacity.
Q: What inventory rule does drive-in racking follow?
A: It adopts the LIFO (Last-In, First-Out) principle. The last pallet loaded will be the first one to be picked. It suits bulk storage of same SKU goods with low turnover frequency.
Q: What products fit drive-in racking?
A: It is ideal for large-volume, uniform palletized goods. Widely used in cold storage, food & beverage, chemical and manufacturing warehouses.
Q: Can drive-in racking be customized?
A: Yes. We can customize dimensions and load capacity according to your warehouse size and pallet weight requirements.
Q: What material is your drive-in rack made of?
A: It is manufactured from heavy-duty steel with powder coating. The surface is anti-rust, scratch-resistant and durable for long-term use.
Q: What are the limitations of drive-in racking?
A: Not suitable for many different SKUs or fast-turnover goods. Forklift operators need professional training to avoid collision with the rack structure.
