Diamond Hole Medium Duty Longspan Shelving- Features
- ✔ Two upright frame options (welded / bolted) for flexible shipping and installation.
- ✔ Multi-stage cold-formed upright section for enhanced bending resistance.
- ✔ 75mm equal hole pitch for precise beam height adjustment.
- ✔ Electrostatic powder coating with strong adhesion, anti-peeling.
- ✔ Interlocking beam connectors lock firmly into diamond holes.
- ✔ Optional accessories: steel deck, back mesh, foot protector.
- ✔ Multiple bays can be connected to maximize warehouse space.
Diamond Hole Medium Duty Longspan Shelving- Specifications
| Diamond hole longspan shelving |
| Dimension |
Beam Levels |
Load Capacity |
| 120*50*200 |
4 |
200kg/level |
| 150*50*200 |
4 |
200kg/level |
| 200*50*200 |
4 |
200kg/level |
| 120*60*200 |
4 |
200kg/level |
| 150*60*200 |
4 |
200kg/level |
| 200*60*200 |
4 |
200kg/level |
| Diamond hole longspan shelving |
| Dimension |
Beam Levels |
Load Capacity |
| 200*60*200 |
4 |
300kg/level |
| 240*60*200 |
4 |
300kg/level |
| 200*80*200 |
4 |
300kg/level |
| 240*80*200 |
4 |
300kg/level |
| 240*100*240 |
4 |
300kg/level |
Diamond Hole Medium Duty Longspan Shelving- Application
- ✔ Ideal for factory workshops for storing tools, spare parts and semi-finished goods.
- ✔ Perfect for small and medium warehouses for daily stock and carton storage.
- ✔ Widely used in retail stockrooms for orderly commodity arrangement.
- ✔ Suitable for office storage rooms to archive documents and supplies.
- ✔ Applicable in logistics centers for temporary goods sorting and turnover storage.
- ✔ Fit for garage and warehouse basements for household and industrial item storage.

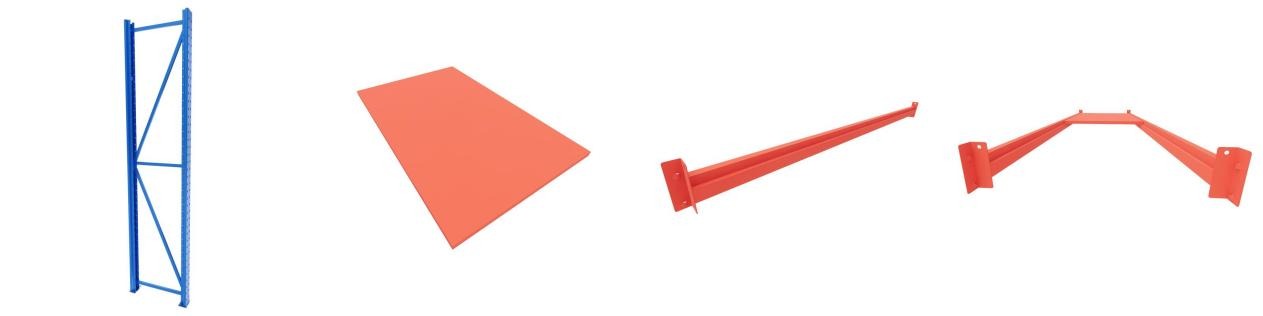

Diamond Hole Medium Duty Longspan Shelving- Component

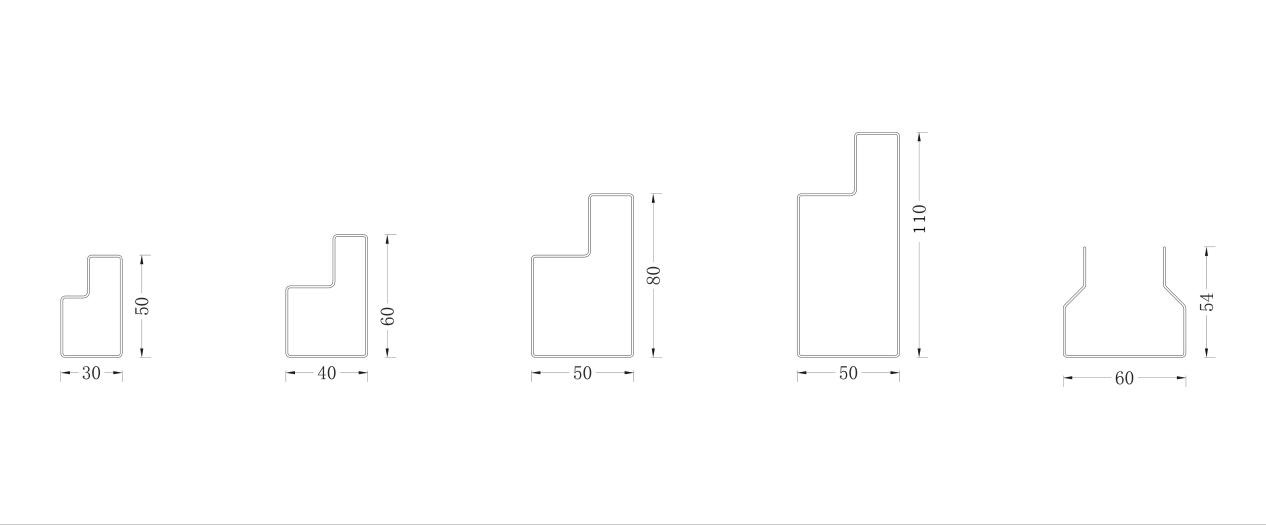

P Shape Beams

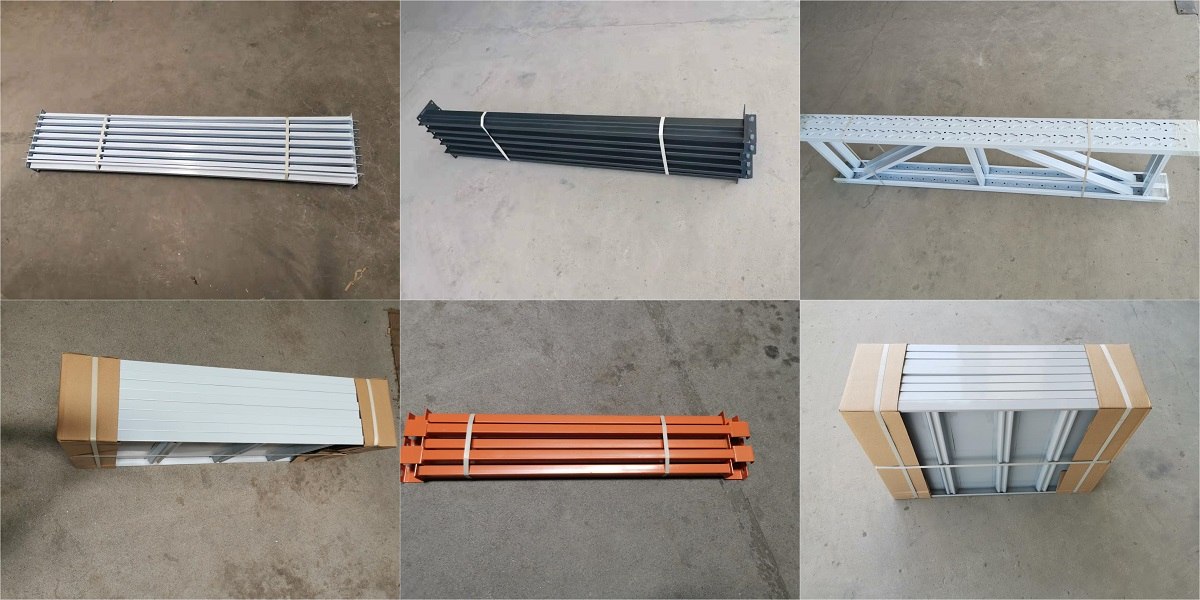

Diamond Hole Medium Duty Longspan Shelving-Packing
FAQ for Diamond Hole Medium Duty Longspan Shelving

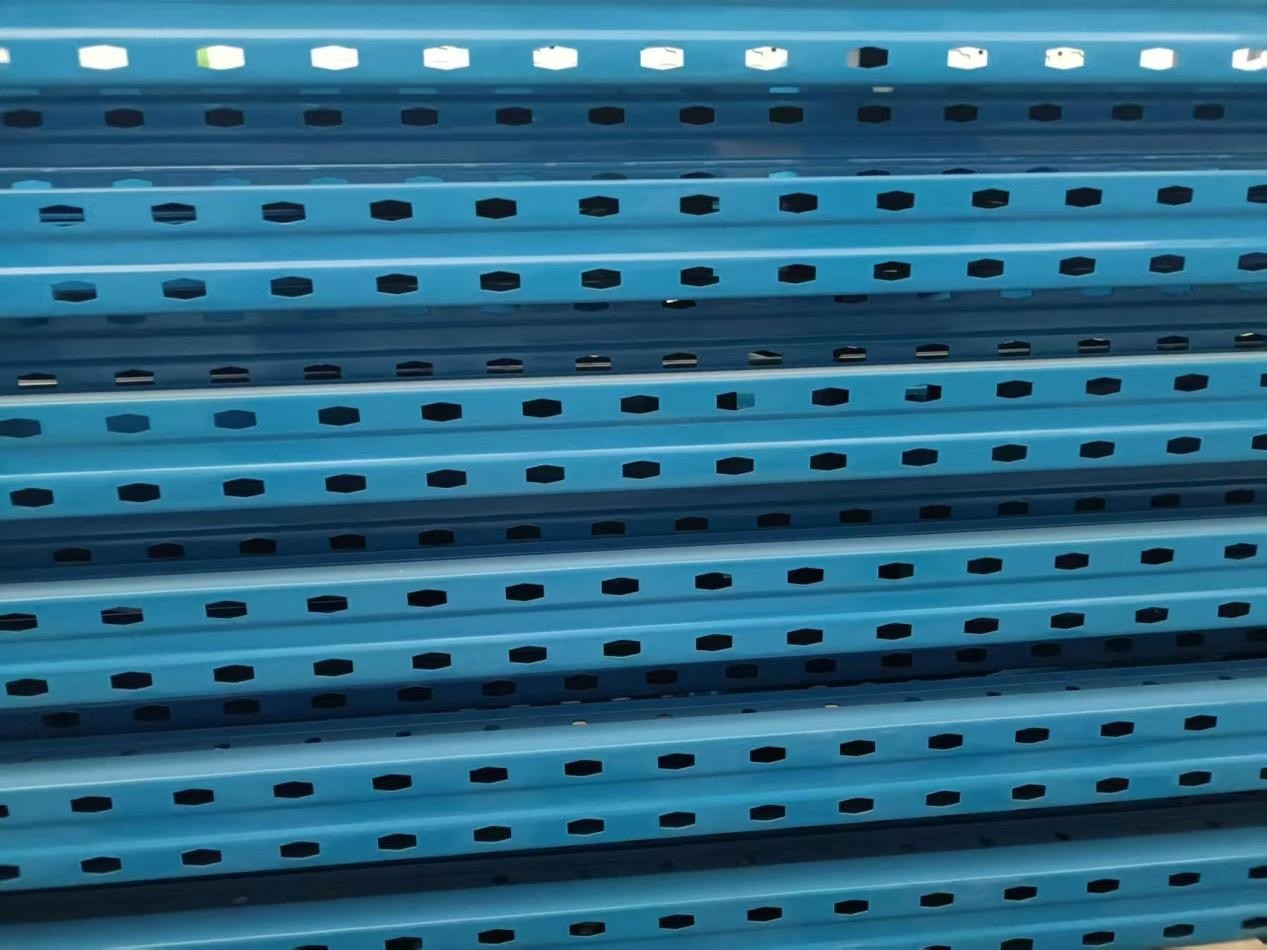

Q: What is the feature of the upright holes for this longspan shelving?
A: The uprights are designed with vertical hexagonal diamond holes at a 75mm pitch. This structure allows flexible, step-by-step adjustment of beam heights to accommodate goods with various heights and sizes.
Q: What types of upright frames can I choose?
A: Two options are available to meet different project requirements: welded upright frames and bolted screw-fastened upright frames. You can pick the proper version based on site conditions and installation preferences.
Q: What material and surface finish does this shelving adopt?
A: It is fabricated from heavy-duty cold rolled steel and finished with powder coating. The coating offers stable anti-rust and scratch-resistant properties for long-term indoor service.
Q: How about the assembly method?

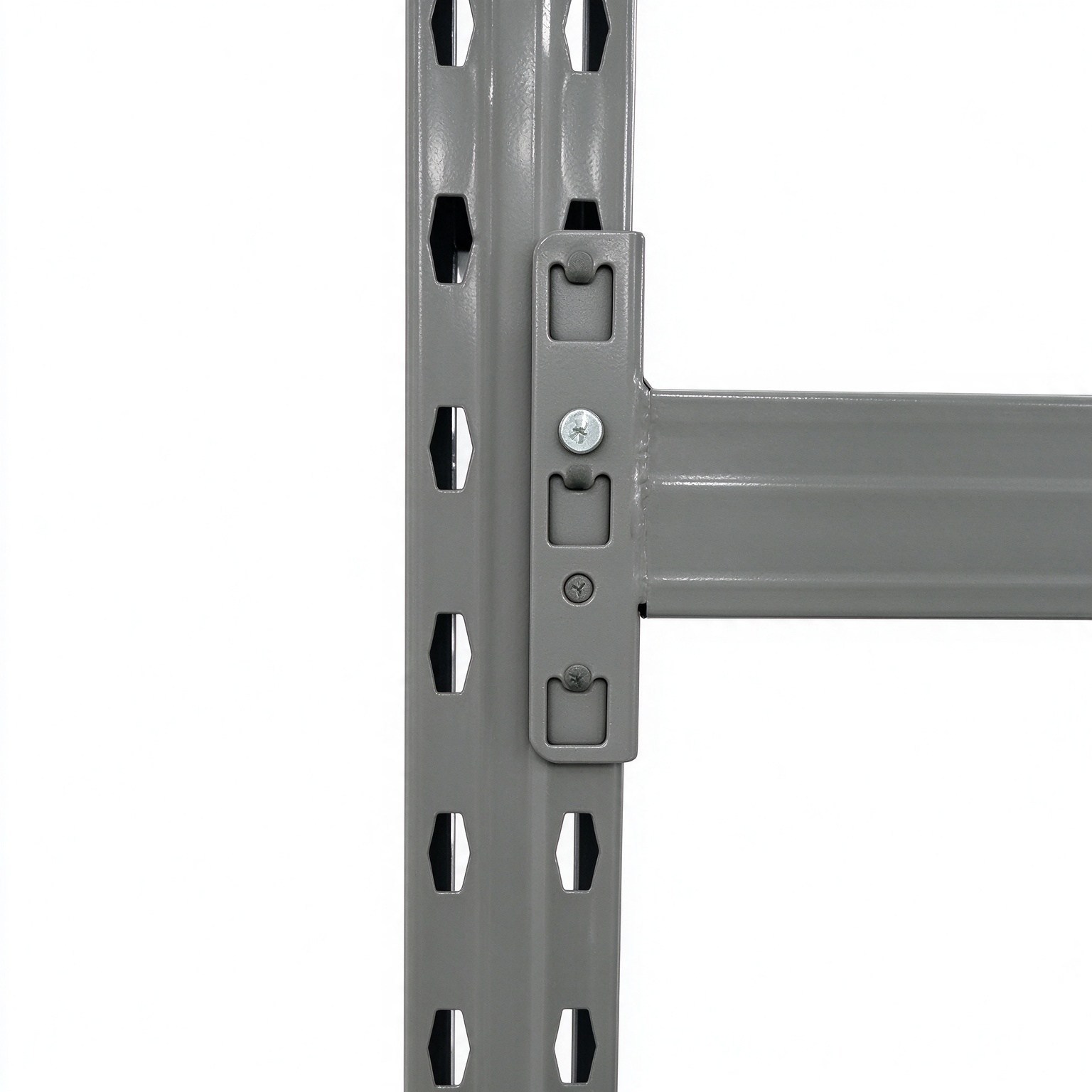

A: It features boltless beam connection. Beams clip directly into diamond holes without nuts, bolts or special tools, enabling fast assembly, disassembly and relocation.
Q: Where is this shelving suitable to use?
A: It is designed for medium-weight cargo storage in warehouses, workshops and retail storage rooms. Its modular structure supports convenient extension and layout reconfiguration when your storage needs change.
